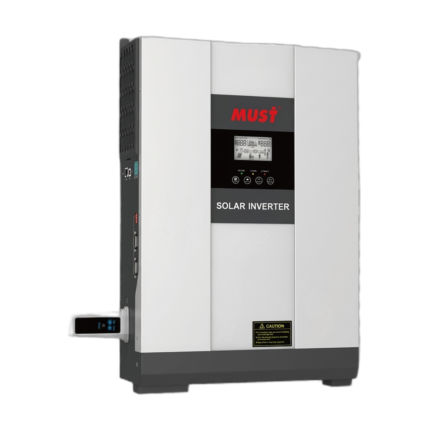

PV19-12048 EXP MUST Off Grid Solar Inverter 12000W 48VDC 230VAC Dual MPPT Charger

PV19-12048 EXP MUST Off Grid Solar Inverter 12000W 48VDC 230VAC Dual MPPT Charger

Input Voltage: 48VDC

Output Voltage: 230VAC ±5% (Setting)

Rated Power: 12000W

Surge Power: 24000W

Maximum Solar Charge Current: 150A

Maximum AC Charge Current: 150A

Maximum Charge Current: 150A

PV Array MPPT Voltage Range: 90~450VDC

Maximum PV Array Open Circuit Voltage: 500VDC (450V for Parallel)

The PV19-12048 EXP is a high-performance off-grid inverter/charger that combines a pure sine wave inverter, dual MPPT solar charger, and battery charger into one compact unit. It provides reliable power, supports operation without a battery, features a color LCD display, and accepts up to 500VDC PV input for efficient solar energy utilization.

• Pure sine wave output
• Smart LCD settings
• Built-in Dual MPPT solar charge controller
• Supports up to 500VDC PV input
• Dual output for smart load management
• Operates without a battery
• Combines solar, utility, and battery power for continuous supply
• Overload, short-circuit, and deep-discharge protection
• BMS lithium battery communication
• AC/PV lithium battery activation
• USB & RS485 communication
• Optional Wi-Fi monitoring
• Parallel operation up to 6 units

Datasheet:

DownoadPV19-12048 EXP
