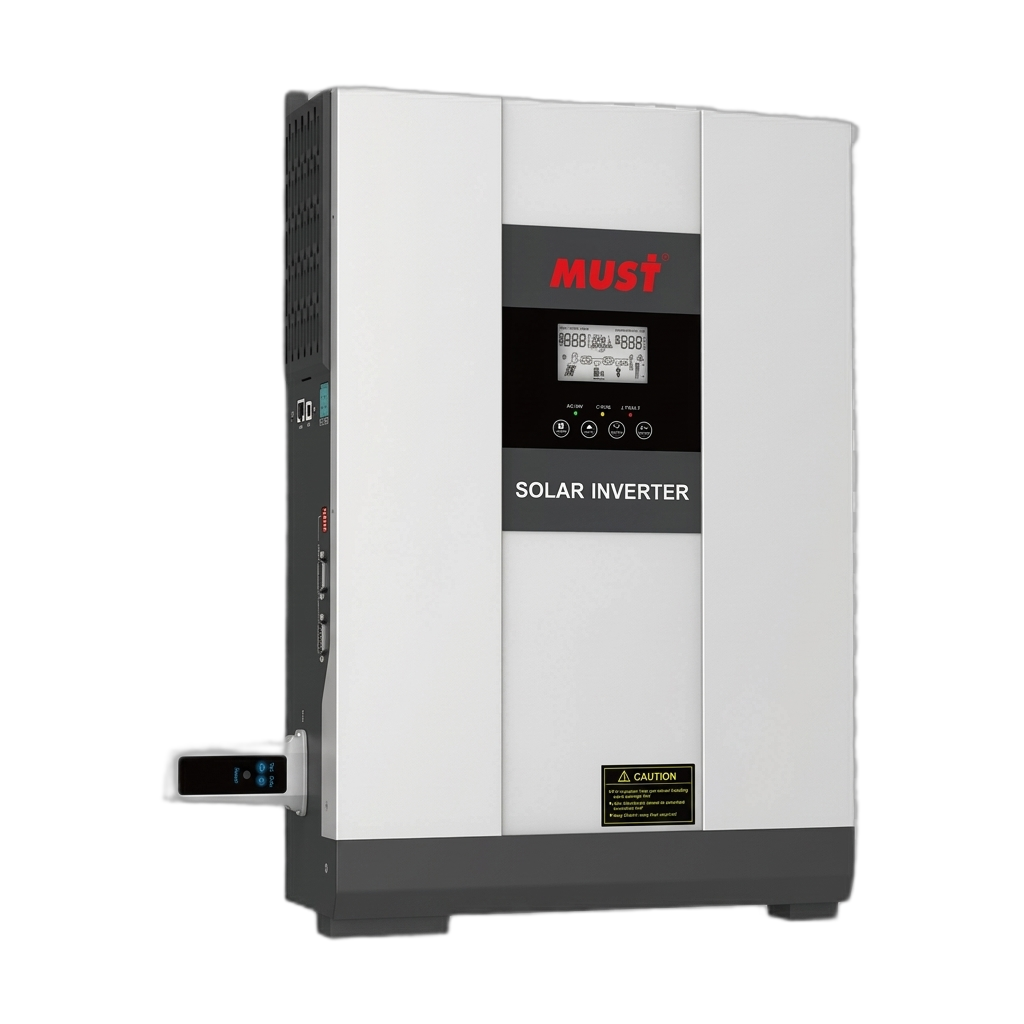

PV18-3024 VHM MUST Off Grid Solar Inverter 3000W 24VDC 230VAC MPPT Charger
17,215.00 EGP
Off Grid Solar Inverter
3000W 24VDC 230VAC
| Quantity | Price | Discount |
|---|---|---|
| 10-20 | 16,870.70 EGP | 2% |
| 21-100 | 16,354.25 EGP | 5% |
| 101-200 | 15,923.88 EGP | 7.5% |
| 201+ | 15,493.50 EGP | 10% |
Available on backorder
Description
PV18-3024 VHM MUST Off Grid Solar Inverter 3000W 24VDC 230VAC MPPT Charger
input voltage: 24VDC
output voltage: 230VAC±5%(Setting)
Maximum Solar Charge Current: 80A
Maximum AC Charge Current: 20A/30A
Maximum Charge Current: 80A
PV Array MPPT Voltage Range: 30~130VDC
Max PV Array Open Circuit Voltage: 145VDC
This is a multi-function inverter/charger, combining functions of inverter, MPPT 80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
- Pure sine wave output
- Output power factor 1
- Smart LCD settings (working modes, charging current, charging voltage, AC/solar charger priority, etc.)
- Built-in 80A MPPT solar charge controller
- MPPT efficiency up to 98%
- Combines solar, AC utility, and battery power sources for continuous power supply
- Overload, short-circuit, and deep-discharge protection
- Cold start function
- Built-in anti-dust kit for harsh environments
- Supports USB and RS485 monitoring
- Optional Wi-Fi remote monitoring
- Supports parallel operation up to 3 units (3–5.5 kW 48 V models only)
- Auto-sensing 50/60 Hz frequency
- Compatible with generators
Datasheet:
Specifications
| Shipping Weight | 12 kg |
|---|---|
| Brand | MUST |
| Model | PV18-3024 VHM |
| TECHNOLOGY | DC/AC |
| Input Voltage (VDC) | 24 |
| Output Voltage (VAC) | 230 |
| OUTPUT POWER (W) | 3000 |
| AC Charger (A) | 30 |
| Solar Charger (A) | 80 |
| Maximum Charger (A) | 80 |
| Solar Charger Type | MPPT |
| PRODUCT WEIGHT (KG) | 11 |
| PRODUCT DIMENSION (LXWXH) (MM) | 272*355*100 |
Datasheet
