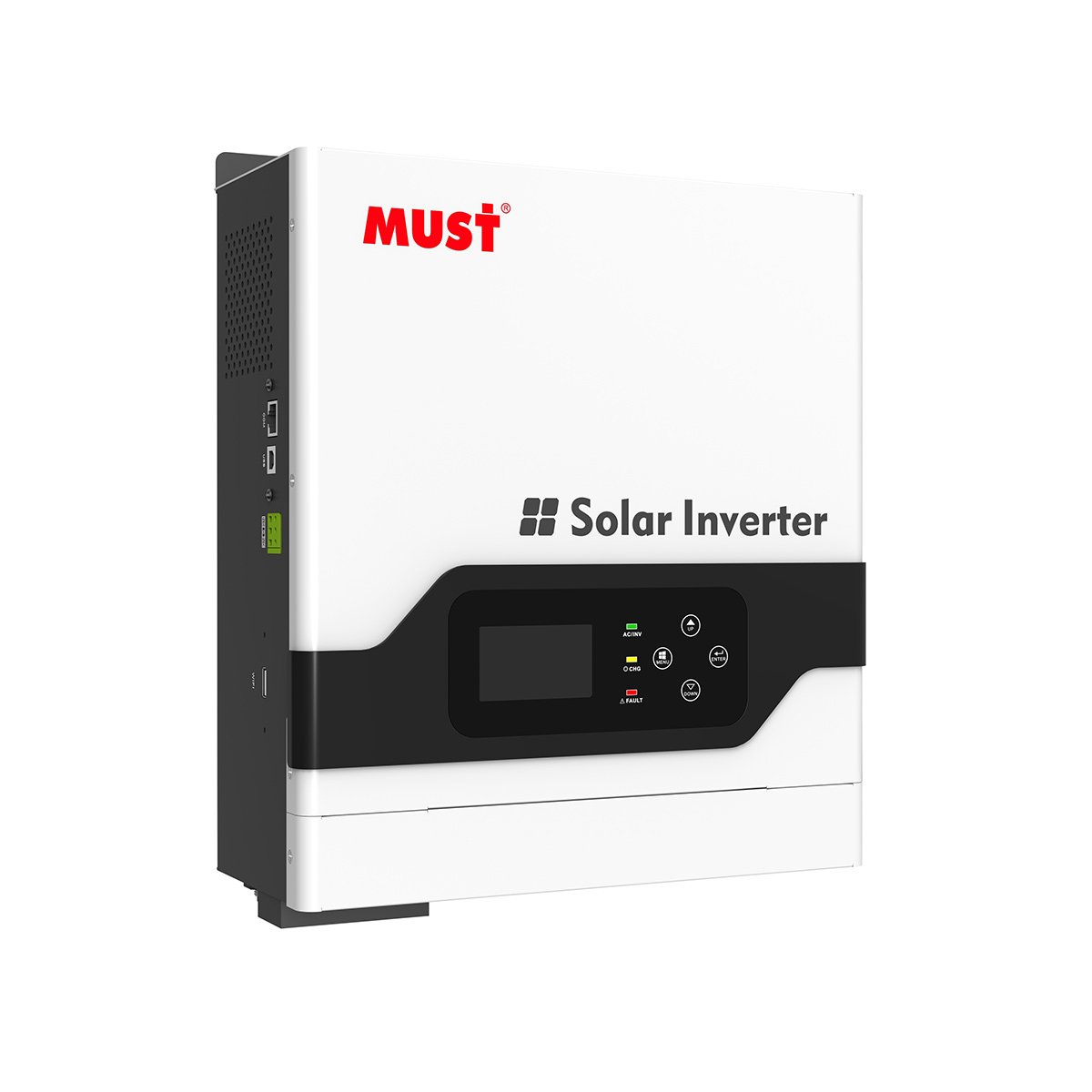

PV18-3024 VPM MUST Off Grid Solar Inverter 3000W 24VDC 230VAC MPPT Charger

PV18-3024 VPM MUST Off Grid Solar Inverter 24VDC 230VAC MPPT Charger

input voltage: 24VDC

output voltage: 230VAC±5%(Setting)

Maximum Solar Charge Current: 50A

Maximum AC Charge Current: 30A

Maximum Charge Current: 80A

PV Array MPPT Voltage Range: 30~80VDC

Max PV Array Open Circuit Voltage: 100VDC

This is a multi-function inverter/charger, combining functions of inverter, MPPT50A/80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

• Pure sine wave output
• Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
• Bult in MPPT50A/80A solar charge controller
• Combining solar system, AC utility, and battery power source to supply continuous power
• Overload, short circuit and Deep discharge protection
• Cold start function
• Support USB, RS485 monitoring function with free CD
• WIFI remote monitoring (optional)
• Compatible to generator
• 3KW-5KW support parallel function(optional)

Datasheet:

Download PV1800 VPM
