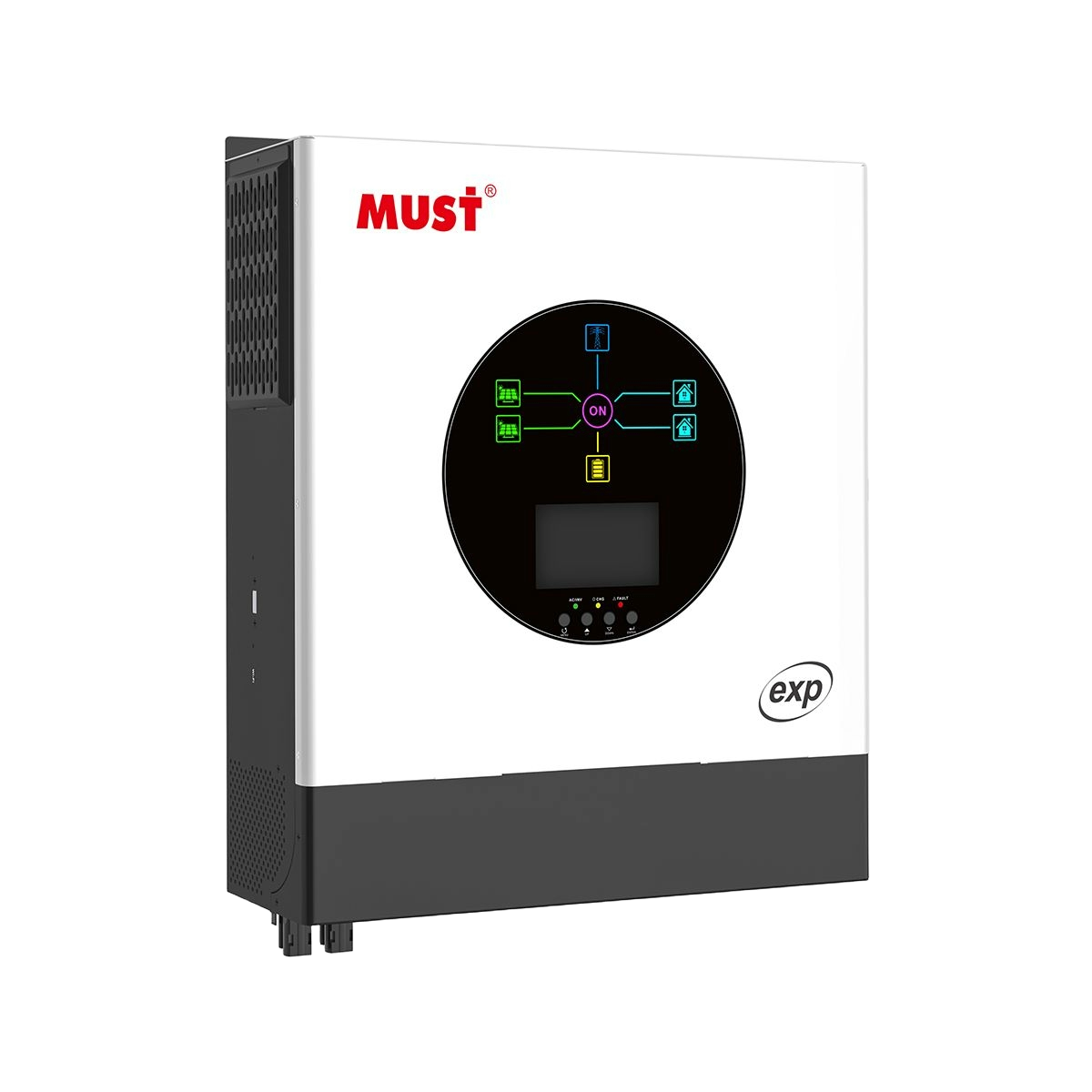

PV19-10048 EXP MUST Off Grid Solar Inverter 10000W 48VDC 230VAC Dual MPPT Charger

PV19-10048 EXP MUST Off Grid Solar Inverter 10000W 48VDC 230VAC Dual MPPT Charger

Input Voltage: 48VDC

Output Voltage: 230VAC ±5% (Setting)

Rated Power: 10000W

Surge Power: 20000W

Maximum Solar Charge Current: 150A

Maximum AC Charge Current: 150A

Maximum Charge Current: 150A

PV Array MPPT Voltage Range: 90~450VDC

Maximum PV Open Circuit Voltage: 500VDC

The PV19-10048 EXP is a multi-function off-grid inverter/charger that combines a pure sine wave inverter, Dual MPPT solar charger, and battery charger into one compact unit. It provides reliable power, supports operation without a battery, features a color LCD display, and accepts up to 500VDC PV input for efficient solar energy utilization

• Pure sine wave output
• Built-in Dual MPPT solar charge controller
• Smart LCD settings
• Supports up to 500VDC PV input
• Operates without a battery
• Combines solar, utility, and battery power for continuous supply
• Overload, short-circuit, and deep-discharge protection
• Cold start function
• USB & RS485 communication
• Optional Wi-Fi monitoring
• Compatible with lithium batteries
• Parallel operation up to 6 units
• Generator compatible

Datasheet:

Download PV19-10048 EXP
