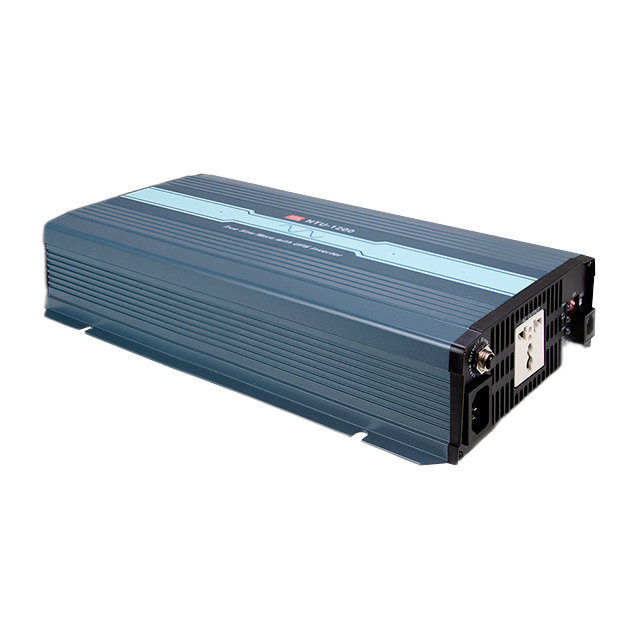

NTU-1200-112UN Mean Well DC/AC Power Inverter UPS function 1200W 12VDC 110VAC
22,000.00 EGP
DC/AC Power Inverter UPS
1200W 12VDC 110VAC
| Quantity | Price | Discount |
|---|---|---|
| 10-20 | 21,560.00 EGP | 2% |
| 21-100 | 20,900.00 EGP | 5% |
| 101-200 | 20,350.00 EGP | 7.5% |
| 201+ | 19,800.00 EGP | 10% |
Available on backorder
Description
NTU-1200-112UN Mean Well DC/AC Power Inverter UPS function 1200W 12VDC 110VAC
Brand: Mean Well
Model: NTU-1200-112UN
input: 12 VDC
output: 110 VAC
Built-in DIP switch to adjust AC output voltage, frequency, and saving mode
DC-AC pure since wave output (THD<3%)
Remote controller(IRC1, IRC2, IRC3)
Multiple intelligent protection functions:
– DC input side: reverse polarity, under voltage, over voltage protection
– AC output side: short circuit, overload, over temperature protection
Datasheet:
Specifications
| Shipping Weight | 9 kg |
|---|---|
| Brand | Mean Well |
| Model | NTU-1200-112UN |
| TECHNOLOGY | DC/AC |
| Input Voltage (VDC) | 12 |
| Input Voltage range (VDC) | 10~16.5 |
| Output Voltage (VAC) | 110 |
| Output Voltage options (VAC) | Selectable 100-110-115-120 |
| OUTPUT POWER (W) | 1200 |
| AC Charger (A) | – |
| Solar Charger (A) | – |
| Solar Input range (VDC) | – |
| Solar Charger Type | – |
| SHAPE | Enclosed |
| PRODUCT WEIGHT (KG) | 3.3 |
| IP RATING | not assigned |
| SAFETY | CB, DEKRA, UL458, E13, EAC |
| PRODUCT DIMENSION (LXWXH) (MM) | 333x184x70 |
Datasheet
