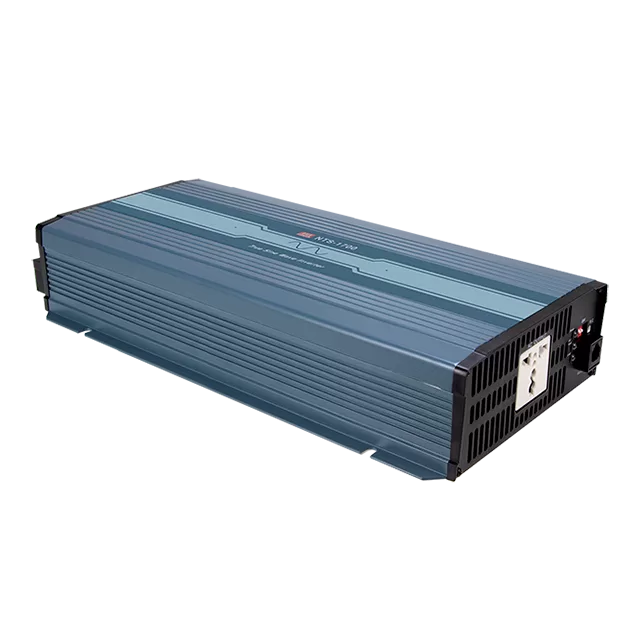

NTS-1700-224UN Mean Well DC/AC Power Inverter 1700W 24VDC 230VAC
29,846.00 EGP
DC/AC Power Inverter
1700W 24VDC 230VAC
| Quantity | Price | Discount |
|---|---|---|
| 10-20 | 29,249.08 EGP | 2% |
| 21-100 | 28,353.70 EGP | 5% |
| 101-200 | 27,607.55 EGP | 7.5% |
| 201+ | 26,861.40 EGP | 10% |
Available on backorder
Description
NTS-1700-224UN Mean Well DC/AC Power Inverter 1700W 24VDC 230VAC
Brand: Mean Well
Model: NTS-1700-224UN
input: 24 VDC
output: 230 VAC
DC-AC pure since wave output (THD<3%)
Convection cooled fanless design, high efficiency up to 93%
Built-in DIP switches to adjust AC output voltage, frequency, and work mode
Multiple intelligent protection functions:
- DC input side: reverse polarity, under voltage, over voltage protections
- AC output side: short circuit, overload, over temperature protections
Datasheet:
Specifications
| Shipping Weight | 5.7875 kg |
|---|---|
| Brand | Mean Well |
| Series | NTS |
| Model | NTS-1700-224UN |
| TECHNOLOGY | DC/AC |
| Input Voltage (VDC) | 24 |
| Input Voltage range (VDC) | 20~33 |
| Output Voltage (VAC) | 230 |
| Output Voltage options (VAC) | selectable 200-220-230-240 |
| OUTPUT POWER (W) | 1700 |
| AC Charger (A) | – |
| Solar Charger (A) | – |
| Solar Input range (VDC) | 1 |
| Solar Charger Type | – |
| SHAPE | Enclosed |
| PRODUCT WEIGHT (KG) | 9.26 |
| IP RATING | not assigned |
| SAFETY | CB, CE, CUL, Derka (橫式), E/e, EAC, FCC, RCM |
| PRODUCT DIMENSION (LXWXH) (MM) | 400x184x70 |
Datasheet
