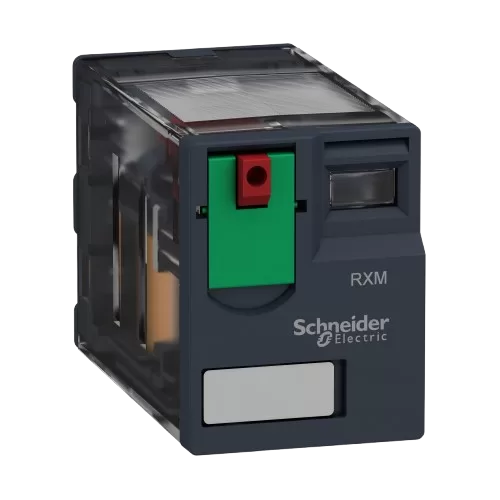

RXM4AB1P7 Schneider Electric Miniature plug-in relay, 6 A, 4 CO, 230 V AC

RXM4AB1P7 Schneider Electric Miniature plug-in relay, 6 A, 4 CO, 230 V AC

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 230 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).

Datasheet:

Download RXM4AB1P7
