LADR2 Schneider Electric Time delay auxiliary contact block, TeSys D, 1NO + 1NC, off delay 1-30 s, front mounting, screw terminals
Original price was: 2,787.00 EGP.2,720.00 EGPCurrent price is: 2,720.00 EGP.
LADT2 Schneider Electric Time delay auxiliary contact block, TeSys D, 1NO + 1NC, on delay 1-30 s, front mounting, screw terminals
Original price was: 2,787.00 EGP.2,720.00 EGPCurrent price is: 2,720.00 EGP.
LADS2 Schneider Electric Time delay auxiliary contact block, TeSys D, 1NO + 1NC, on delay 1-30 s, front mounting, screw terminals
Original price was: 3,265.00 EGP.3,150.00 EGPCurrent price is: 3,150.00 EGP.
Time delay auxiliary contact
LADS2
| Quantity | Price | Discount |
|---|---|---|
| 10-20 | 3,087.00 EGP | 2% |
| 21-100 | 2,992.50 EGP | 5% |
| 101-200 | 2,913.75 EGP | 7.5% |
| 201+ | 2,835.00 EGP | 10% |
13 in stock (can be backordered)
Description

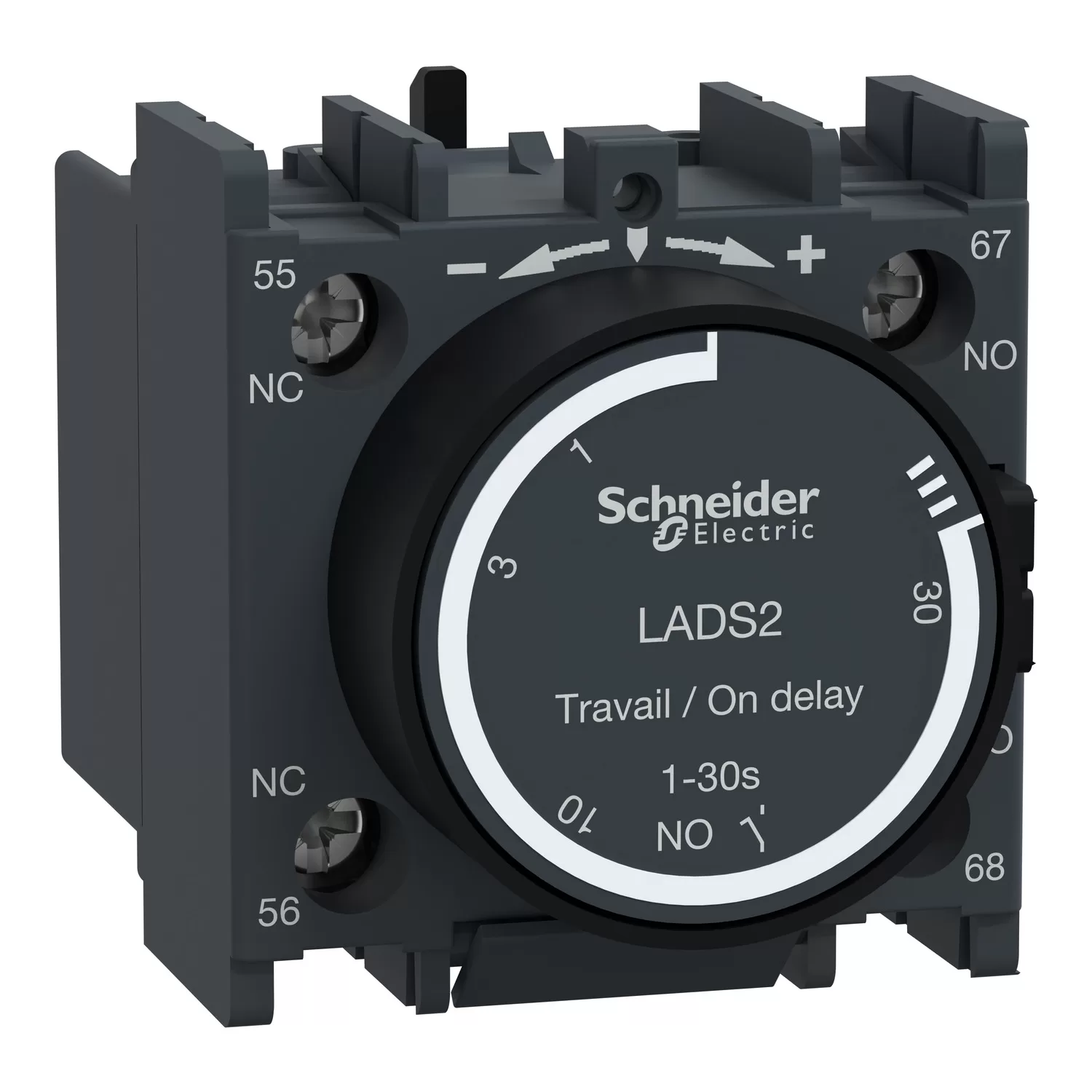

LADS2 Schneider Electric Time delay auxiliary contact block, TeSys D, 1NO + 1NC, on delay 1-30 s, front mounting, screw terminals
TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 1-30s, connection by screw clamp terminals. A delay of 40ms is ensured between opening of NC contact and closing of NO contact. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Datasheet:
Specifications
| Shipping Weight | 0.5 kg |
|---|---|
| Brand | Schneider Electric |
| Series | TeSys D |
| Model | LADS2 |
| Pole contact composition | 1 NO + 1 NC |
| [Ue] rated operational voltage | 690 V AC 25…400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13 |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Time delay range | 1…30 s |
Datasheet
