LC1D12M7 Schneider Electric TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 12 A - 220 V AC coil
Original price was: 1,548.00 EGP.1,450.00 EGPCurrent price is: 1,450.00 EGP.
Contactor
LC1D12M7
| Quantity | Price | Discount |
|---|---|---|
| 10-20 | 1,421.00 EGP | 2% |
| 21-100 | 1,377.50 EGP | 5% |
| 101-200 | 1,341.25 EGP | 7.5% |
| 201+ | 1,305.00 EGP | 10% |
Available on backorder
Description

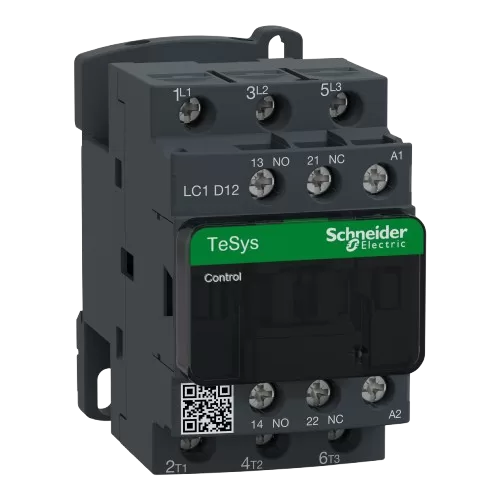

LC1D12M7 Schneider Electric TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 12 A – 220 V AC coil
TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Datasheet:
Specifications
| Shipping Weight | 0.5 kg |
|---|---|
| Brand | Schneider Electric |
| Series | TeSys D |
| Model | LC1D12M7 |
| Pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC |
| [Ie] rated operational current | 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Control circuit type | AC at 50/60 Hz standard |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Irms rated making capacity | 250 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 25 A (at 60 °C) for power circuit 10 A (at 60 °C) for signalling circuit |
| [Icw] rated short-time withstand current | 105 A 40 °C – 10 s for power circuit 210 A 40 °C – 1 s for power circuit 30 A 40 °C – 10 min for power circuit 61 A 40 °C – 1 min for power circuit 100 A – 1 s for signalling circuit 120 A – 500 ms for signalling circuit 140 A – 100 ms for signalling circuit |
Datasheet
