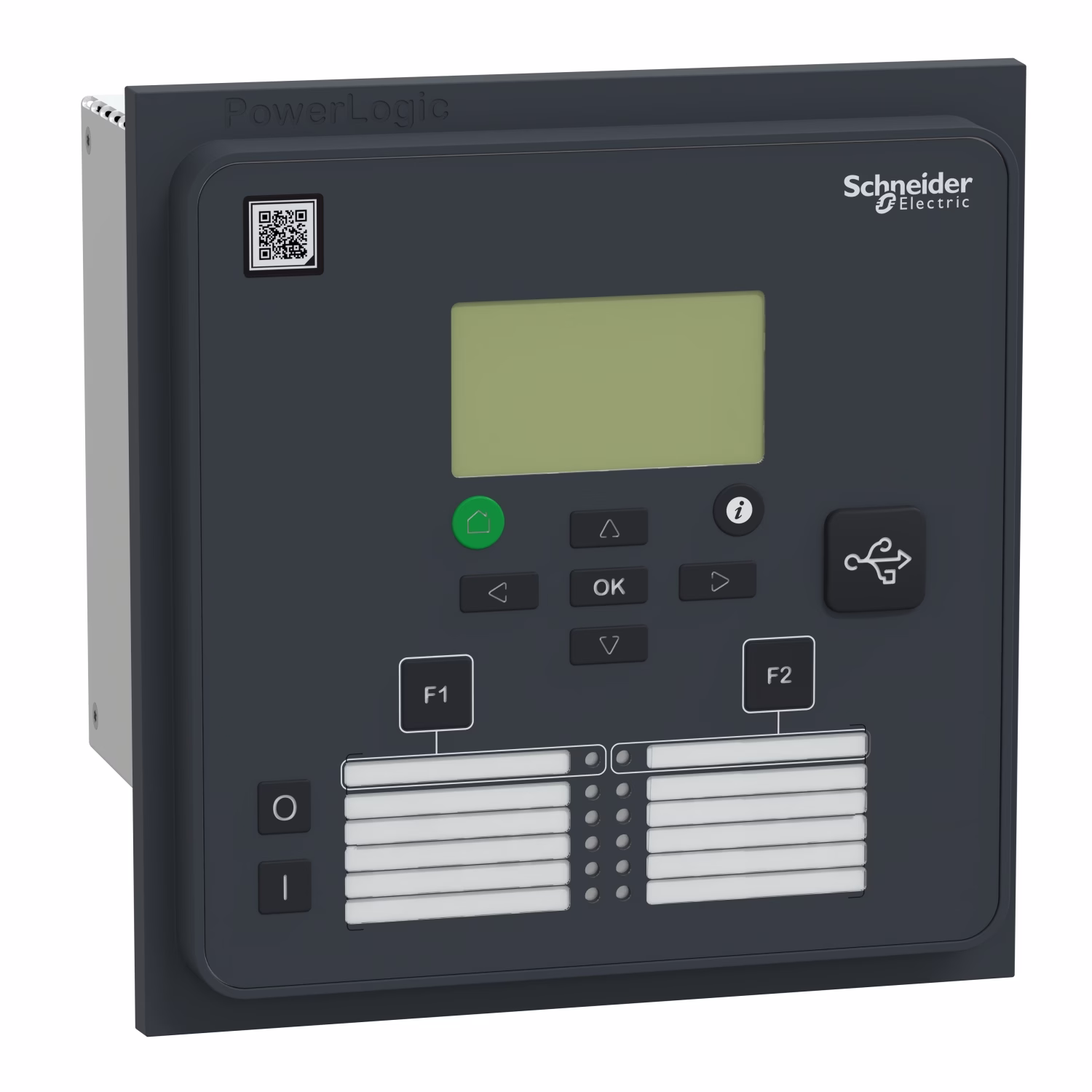

REL52008 Schneider Electric Easergy P3U30, 4L ringlug, 4U, 16DI/8DO, Uaux: 48-230V, DI:110-230V, 2 x RJ-45
240,000.00 EGP
REL52008 Schneider Electric
Protection Relay
| Quantity | Price | Discount |
|---|---|---|
| 10-20 | 235,200.00 EGP | 2% |
| 21-100 | 228,000.00 EGP | 5% |
| 101-200 | 222,000.00 EGP | 7.5% |
| 201+ | 216,000.00 EGP | 10% |
Available on backorder
REL52008 Schneider Electric Easergy P3U30, 4L ringlug, 4U, 16DI/8DO, Uaux: 48-230V, DI:110-230V, 2 x RJ-45
Perfectly suited for buildings and industry, utilities, and large industrial processes. The relay include protection for overcurrent, overload, broken conductor, earth-fault and breaker failure as per ANSI. It also feature an automatic recloser, a switch ON to fault, inrush protection and lockout among others. Simple, reliable, safe and easy-to-use, thanks to the User Interface display. The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network. It include 16 digital inputs, 2 RJ45 communication port and 1 USB on front of the device. Mechanical dimensions are 169.5 mm in height, 170 mm in width and 205 mm in depth. The relays are certified with EN 60255-26 for electromagnetic compatiblity. The device is compatible with aditional modules and accessories: connection cables, communication modules, temperature and analogue input and output modules, LPVT & PLCT option, arc flash sensors, and other accessories.
Datasheet:
| Shipping Weight | 3 kg |
|---|---|
| Brand | Schneider Electric |
| Series | PowerLogic P3 |
| Model | REL52008 |
| Supply | 48…230 V AC/DC |
| measuring inputs | : 1/5 A CT phase current 3 : 1/5 A CT residual current 1 : 100 V/110 V VT voltage 4 |
| protection functions | Phase overcurrent 50/51 Directional phase overcurrent 67 Earth fault overcurrent 50N/51N Directional earth fault 67N Transient earth fault 67NI Capacitor bank unbalance 51C Broken conductor 46 I2/I1 Cold load pick-up Switch ON to fault (SOTF) Breaker failure 50BF Directional active underpower 37P Fault locator 21FL Recloser 79 Phase undercurrent 37 Excessive starting time, locked rotor 48/51LR Motor restart inhibition 66 Capacitor overvoltage 59C Negative sequence overcurrent 46 Overvoltage 59 Undervoltage 27 Positive sequence undervoltage 27P Earth fault overvoltage 59N Underfrequency 81/81N Rate of change of frequency 81R Synchro-check 25 Lockout relay 86 CT supervision 60 VT supervision 60 H2 detection 68H2 H5 detection 68H5 Negative sequence overcurrent 47 Programmable stages 99 Programmable curve |
