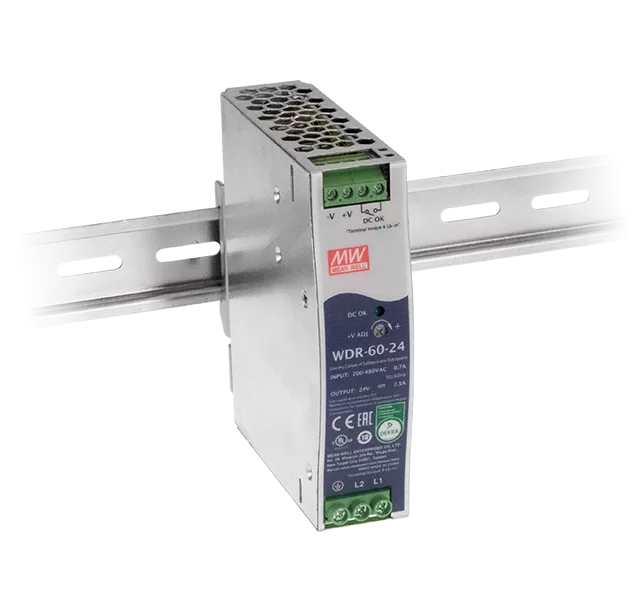

WDR-60-24 Mean Well Power Supply Din Rail 24 VDC 2.5A
2,806.00 EGP
Power Supply
24VDC 2.5A
| Quantity | Price | Discount |
|---|---|---|
| 10-20 | 2,749.88 EGP | 2% |
| 21-100 | 2,665.70 EGP | 5% |
| 101-200 | 2,595.55 EGP | 7.5% |
| 201+ | 2,525.40 EGP | 10% |
3 in stock (can be backordered)
Description
WDR-60-24 Mean Well Power Supply Din Rail 24 VDC 2.5A
Brand: Mean Well
Model: WDR-60-24
output: 24 VDC 2.5A
Metal case, slim size
1∅ and 2∅ , 180~550VAC wide input
High efficiency up to 93%
Built-in active PFC function (240W & 480W)
Datasheet:
Specifications
| Shipping Weight | 0.6 kg |
|---|---|
| Brand | Mean Well |
| Series | WDR |
| Model | WDR-60-24 |
| TECHNOLOGY | AC/DC |
| INPUT VOLTAGE (VAC) | 180~550 |
| OUTPUT VOLTAGE (VDC) | 24 |
| OUTPUT CURRENT (A) | 2.5A |
| OUTPUT POWER (W) | 60 |
| SHAPE | Din Rail |
| PRODUCT DIMENSION (LXWXH) (MM) | 32×125.2×102 |
| PRODUCT WEIGHT (KG) | 0.41 |
| IP RATING | not assigned |
| ROHS | ROHS |
| SAFETY | CE, CUL listed, EAC, TUV-62368-1 |
Datasheet
