TDR-960-24 Mean Well Power Supply Din Rail 24 VDC 40A
17,192.00 EGP
Power Supply
24VDC 40A
| Quantity | Price | Discount |
|---|---|---|
| 10-20 | 16,848.16 EGP | 2% |
| 21-100 | 16,332.40 EGP | 5% |
| 101-200 | 15,902.60 EGP | 7.5% |
| 201+ | 15,472.80 EGP | 10% |
Available on backorder
Description

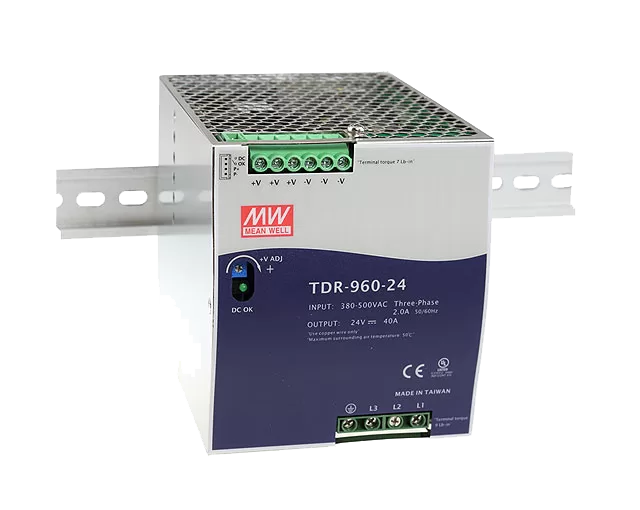

TDR-960-24 Mean Well Power Supply Din Rail 24 VDC 40A
Brand: Mean Well
Model: TDR-960-24
output: 24 VDC 40A
Metal case, slim size
3∅, 340~550VAC input
High efficiency up to 94.5%
Built-in active PFC function
Datasheet:
Specifications
| Shipping Weight | 3.1 kg |
|---|---|
| Brand | Mean Well |
| Series | TDR |
| Model | TDR-960-24 |
| TECHNOLOGY | AC/DC |
| INPUT VOLTAGE (VAC) | 340~550 |
| OUTPUT VOLTAGE (VDC) | 24 |
| OUTPUT CURRENT (A) | 40A |
| OUTPUT POWER (W) | 960 |
| SHAPE | Din Rail |
| PRODUCT DIMENSION (LXWXH) (MM) | 110×125.2×150 |
| PRODUCT WEIGHT (KG) | 2.46 |
| IP RATING | not assigned |
| ROHS | ROHS |
| SAFETY | BIS, CB, CE, CUL listed, EAC |
Datasheet
